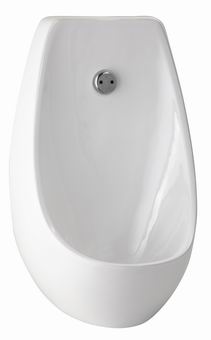

AUP 3 - DOMINO ceramic urinal with automatic flushing

PDFPrintEmail
AUP 3 is DOMINO ceramic bowl urinal with automatic flushing device using contactless control by means of an optoelectronic sensor that reacts on entering to scanning zone. The bowl urinal is flushed after leaving the scanned area (scanning zone). The sensor does not react to by-passing persons and is not sensitive to daylight and artificial lighting. After 24 hours of no activity, the bowl urinal automatically flushes. Trap is not a part of the delivery. Construction of the flushing system allows easy installation comprising only connection and suspension of the ceramics on prepared wall. Automatický pisoár AUP 3 urinal is intended for social facilities where the user?s comfort and the maintenance of hygiene is required at maximum water savings.
Complete delivery
  1. ceramic DOMINO urinal (Jika)
  2. flushing jet with sensor
  3. electronics
  4. electromagnetic valve
  5. corner valve with filter
  6. battery holder (AUP 3.B)
  7. cylindrical batteries 1,5 V (AUP 3.B) - 4 pcs.
  8. connecting hoses
  9. screws, wall plugs and hooks - 2 pcs.
Requirements for setting up the construction
  1. Set-up water inlet , pipe 1/2? ? as per picture
  2. Set-up outlet d = 50 mm
  3. Set-up cable for power supply ? 12 V, 50 Hz from source of power supply ZAC (not valid for AUP 3.B)
Download information about the product
Basic technical information
Radius of sensorself-adjusting
Water inletG 1/2"
Water pressure0,1 - 1,0 MPa (AUP 3)
 AA batteries - 1,5 V (AUP 3.B) - 4 pcs.
Outletaccording to the siphon used
Adjustable time of flushing1 - 20 s (adjusted to 5 s)
Power supply12 V, 50 Hz (AUP 3)
Power requirement6 VA (AUP 3)
Source of power supplyZAC 1/20 (max. 3 x AUP 3)
Operating time of batteriesaprox. 1,5 years at 100 flushes a day
Weight11 kg
Figures

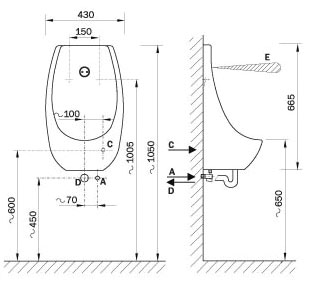

Figure - AUP 3 DOMINO ceramic urinal with automatic flushing
A -water inlet G1/2" inner
C -electricity supply (AUP 3) - cable CYKY 2A x 1,5
D -outlet - according to the siphon used
E -zone of scanning
