AUM 03.1 - washbasin, large sink, wall mounted, connection to one water - 12V, 50Hz

PDFPrintEmail

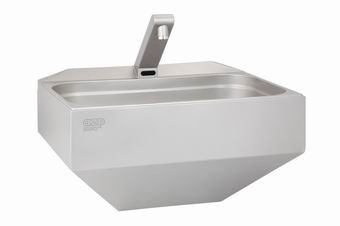

AUM 03 is a sensor-controlled stainless steel wall-mounted washbasin. The washbasin is equipped with a sensor-controlled welded stainless steel outlet arm. Water turns on automatically when the user's hands are placed within the sensor's range and turns off when they have been removed. Water stops running with a certain time delay after the hands have been removed from the scanning zone. The washbasin is equipped with a mechanism against excess pressure of hot and cold water. AUM 03 is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents ? material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1). The AUM 03 stainless steel washbasin, in its construction and finish, meets EU standards and is mainly intended for food processing industry. It may be utilized in any other operations, where increased hygienic standards along with maximal water savings are required.
Complete delivery
  1. sink with sheathing
  2. photocell head
  3. electronics
  4. electromagnetic valve
  5. corner valve with filter (AUM 03.2 and .TV ? 2 pcs)
  6. mixing valve (AUM 03.2)
  7. thermostatic valve (AUM 03.TV)
  8. waste siphon
  9. connecting hoses
  10. small assembly materials
Requirements for setting up the construction
  1. Set-up water inlet as per picture
  2. Set-up outlet d = 40 mm
  3. Set-up cable for power supply ? 12 V, 50 Hz from source of power supply ZAC
Basic technical information
Radius of sensorself-adjusting
Water inletG 1/2?
Water pressure0,1 ? 1,0 MPa
Outletd = 40 mm
Inner dimension of the washbasin520 x 320 x 100 mm
Electricity protectionIP 55
Adjustable time of water flow0 ? 4 sec. (adjusted to 1 sec.)
Power supply12 V, 50 Hz, or for battery versions 6V (4 x AA battery)
Power requirement6 VA
Source of power supplyZAC 1/20 (max. 3 x AUM 03)
 ZAC 1/50 (max. 8 x AUM 03)
Weight9 kg
Figures

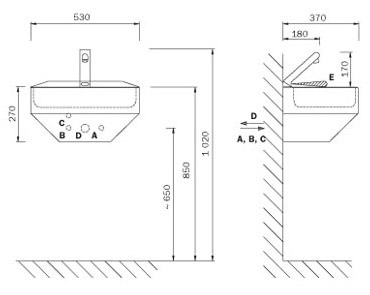

Figure - AUM 03 sensor-controlled stainless steel washbasin
A -cold water (AUM 03.2, .TV)
mixd water (AUM 03.1)
inner pipe G1/2"
D -outlet
B -hot water (AUM 03.2, .TV)
inner pipe G1/2"
E -zone of scaning
C -electricity supply
