AUM 05.TVB - washbasin, middle-size sink, wall mounted, with thermostatic valve - 6V (4x1,5)

PDFPrintEmail

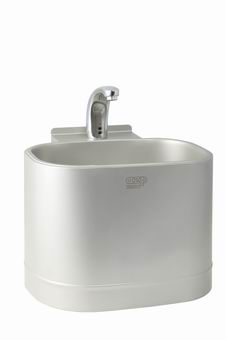

AUM 05 is a sensor-controlled stainless steel wall-mounted washbasin. The washbasin is equipped with a sensor-controlled outlet arm. Water turns on automatically when the user's hands are placed within the sensor's range and turns off when they have been removed. Water stops running with a certain time delay after the hands have been removed from the scanning zone. The washbasin is equipped with a mechanism against excess pressure of hot and cold water. AUM 05 is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents ? material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1). The AUM 05 stainless steel washbasin, in its construction and finish, meets EU standards and is mainly intended for food processing industry. It may be utilized in any other operations, where increased hygienic standards along with maximal water savings are required.
Complete delivery
  1. sink with sheathing
  2. outflow arm
  3. electronics
  4. electromagnetic valve (AUM 05.2 ? 2 pcs)
  5. corner valve with filter (AUM 05.2 and .TV ? 2 pcs)
  6. spherical valve (AUM 05.TV)
  7. thermostatic valve (AUM 05.TV)
  8. through-flow water heater (AUM 05.E)
  9. source of power supply ZAC E ? 12 V, 50 Hz (AUM 05.E)
  10. waste siphon
  11. connecting hoses
  12. small assembly materials
Requirements for setting up the construction
  1. Set-up water inlet as per picture
  2. Set-up outlet d = 40 mm
  3. Set-up cable for power supply ? 12 V, 50 Hz from source of power supply ZAC (not designed for AUM 05.E)
  4. Set-up cable CYKY 3C x 1,5 ? 2,5 (for AUM 05.E)
Basic technical information
Radius of sensorself-adjusting
Water inletG 1/2?
Outletd = 40 mm
Inner dimension of the washbasin370 x 240 x 150 mm
Adjustable time of water flow0 ? 4 sec. (adjusted to 1 sec.)
AUM 05.1, .2, .TV
Water pressure0,2 ? 0,6 MPa
Power supply230 V, 50 Hz
Power requirement3 500 W
 ZAC 1/50 (max. 8 x AUM 05.1, .TV, max. 5 x AUM 05.2)
Source of power supplyZAC 1/20 (max. 3 x AUM 05.1, .TV, max. 2 x AUM 05.2)
Electricity protectionIP 54
Weight11,5 kg
AUM 05.E
Recommended pressure0,3 MPa (without variances and air bubbles)
Figures

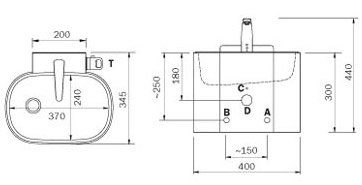

Figure - AUM 05 sensor-controlled stainless steel washbasin
A -cold water
mixed water
inner pipe G1/2"
D -outlet
B -hot water
inner pipe G1/2"
E -zone of scaning
C -electricity supply
