AUM 027.1 - stainless steel washbasin with automatic tap AUM 3, for 1 water
AUM 027 is a stainless washbasin of a modern design with a conical shape covering its waste. Supplied separately or completed with a sensor-controlled tap in all versions ? for premixed water, with a mixing or thermostatic valve. Feeding is possible from the mains through a safe source of power supply ZAC, or from 4 AA batteries.
The washbasin is made of AlSl 304 stainless steel. A recommended agent for stainless products maintenance: Würth ? preservation (order no. 0893 121 K), cleaning (order no. 893 121 1).
Complete delivery
- st. steel washbasin
- outlet
- small fixing material
Requirements for setting up the construction
- Prepared outlet d = 40 mm according to the scheme
- Prepared water inlet G 1/2" according to the scheme (only for versions including tap)
- Prepared el. supply cable 12 V, 50 Hz from source ZAC (CYKY 2A x 1,5) - only for 12 V versions
Basic technical information
| Radius of sensor | self-adjusting |
| Water inlet | G 1/2? |
| Water outlet | d = 40 mm |
| Adjustable time of after-flow delay | 0-4 s (adjusted to 1s) |
| Water pressure | 1 - 10 Bar (0,1 - 1,0 MPa) (12V verze) |
| ZAC 1/36L (max. 6x AUM 027.1, AUM 027.TV; max. 4x AUM 027.2) | |
| Power supply | 12 V, 50 Hz (AUM 027.1; AUM 027.2; AUM 027.TV) |
| Power requirement | 6 VA (AUM 027.1; AUM 027.TV) |
| Source of power supply | ZAC 1/20 (max. 3x AUM 027.1, AUM 027.TV; max. 2x AUM 027.2) |

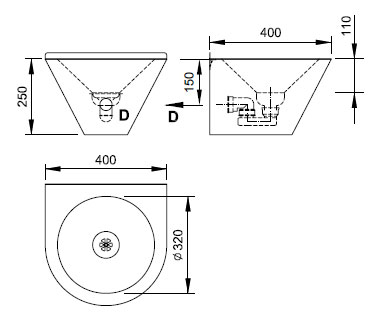

Figures
| D - | outlet |
