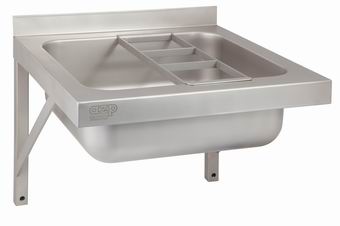

VL 05 - stainless steel wall-mounted bucket sink with grid
VL 05 is a stainless bucket sink to be fixed to wall. To increase its resistance the sides are reinforced with st.steel profiles which also enable higher load of the sink. The bucket sink can be supplied with lever mixer, sensor controlled tap or with opening for the tap.
Surface finish is semi-polished, side profiles are sandblasted (matt).
VL 05 is manufactured from the stainless steel AISI 304. For cleaning we recomnned WÜRTH detergents ? material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).
Complete delivery
- steel bucket with side profiles
- plastic waste trap including smell trap
- small fixing material
Requirements for setting up the construction
- Set-up outlet d = 40 mm according to the scheme
Basic technical information
| Dimensions | 455 x 460 x 395 mm |
| Inner dimensions of sink | 385 x 355 x 150 mm |
| Material | st.steel AISI 304 |
| Outlet | d = 40 mm |

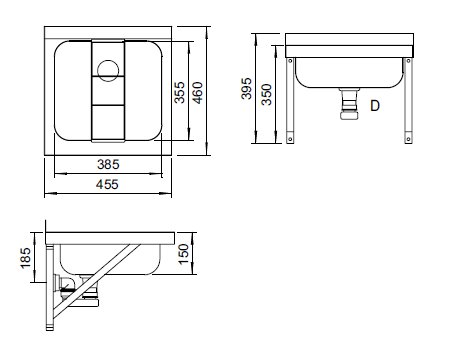

Figures
| D - | outlet d = 40 mm |
