AMO 01 - automatic washing system for wellingtons

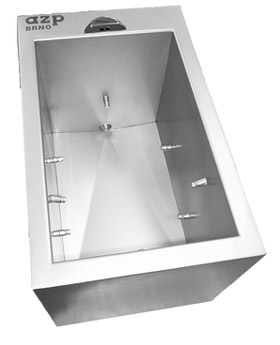

AMO 01 is a stainless steel automatic washing system for wellingtons with sensor-controlled water nozzles. When stepping into the washing chamber of the system (scanning zone) water starts to flow from the nozzles automatically and wellingtons are cleaned of dirt. Water stops flowing with a certain time delay after the foot has been removed from the scanning zone.
AMO 01 is designed for a single pipe inlet of pre-mixed water from the circulation or water pre-mixed by means of a thermostatic valve.
The AMO 01 automatic washing system is intended mainly for operations with slight shoe contamination where quick washing at maximum water savings is guaranteed.
Complete delivery
- body of the washing machine
- photocell head
- nozzles ? 8 pcs
- electromagnetic valves 2 pcs
- corner valves with filter
- connecting hoses
Requirements for setting up the construction
- Set up water inlet as per picture
- Set up outlet d = 32 mm
- Set up cable for power supply ? 12 V, 50 Hz from source of power supply ZAC
Download information about the product
Basic technical information
| Radius of sensor | 0 ? 0,4 m |
| Water inlet | G 1/2? |
| Water pressure | 0,3 ? 1,0 MPa |
| Outlet | d = 32 mm |
| Inner dimensions of the trough | 250 x 400 x 280 mm |
| Electricity protection | IP 55 |
| Power supply | 12 V, 50 Hz |
| Power requirement | 10 VA |
| Source of power supply | ZAC 1/20 (max. 2 x AMO 01) |
| ZAC 1/50 (max. 5 x AMO 01) | |
| Weight | 18 kg |

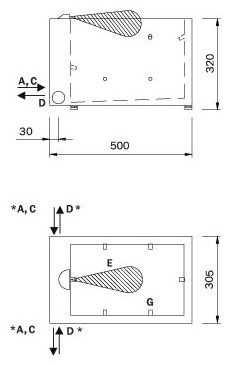

Figures
| A - | water inlet inner pipe G 1/2" | E - | zone of scaning | |
| C - | electricity supply | G - | output nozzles | |
| D - | outlet |
