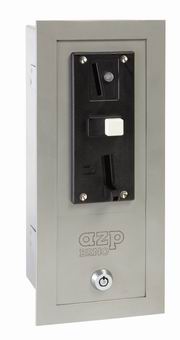

MAS 1 - coin-operated control
MAS 1 is a coin-operated control intended for one shower. The showering time is pre-set on the control by the owner. The user, after inserting a selected amount of the coins, has a certain showering time at his disposal which he can manage by using a STOP/START button. The user is given notice by the interrupted water flow that the showering time is getting to its end. It is possible to prolong the showering time by inserting an additional amount of coins.
Complete delivery
- stainless steel casket
- coin scanning device
- electronics
- box for coins
- casket casing with a lock
Requirements for setting up the construction
- Set up cable for power supply - 12 V, 50 Hz from source of power supply ZAC
- Set up alcove for the control installation
- Set up alcove for SA 1 (SA 11) armature
- Carry out water and electricity distribution net as per schema
Basic technical information
| Power supply | 12V, 50Hz |
| Power requirement | 5VA (20VA when scanning coins) |
| Source of power supply | ZAC 1/50 |
| Types of coins | 1, 2, 5, 10, 20 CZK; 0,1; 0,2; 0,5; 1; 2 EUR and tokens ZT 2; other coins made to order |
| Time of taking a shower bath | 10s - 42,5minutes, after 10s |
| Time of stay in a cabin | 2x time of showering time |
| Weight | 2,6kg |

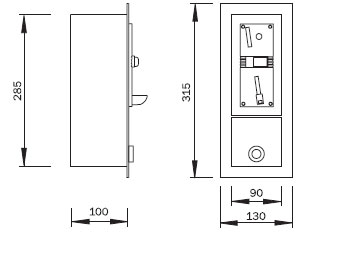

Figures

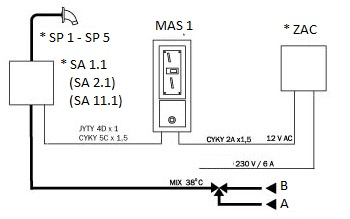

Example of connection to one water supply

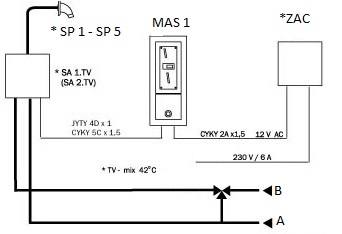

Example of connection to hot and cold water supply
| A - | cold water |
| B - | hot water |
| * - | not part of delivery |
| A - | cold water |
| B - | hot water |
| * - | not part of delivery |
