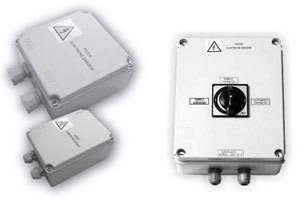

ZAC MAS - safety power-supply for MAS 2 up to MAS 8

PDFPrintEmail
ZAC MAS and ZAC 1 are a safety power-supply units intended for AZP Brno coin-operated controls and related electrical sanitary equipment and devices. The sources contain a safety transformer. ZAC MAS unit is equipped with a switch that enables the unit to be switched off from the electricity supply. There are two other positions on the switch: VALVES SWITCHED ON ? enables constant connection of the controlled device or CONTROL SWITCHED-ON - enables connection through the control ? for paid operations. The ZAC MAS source of power supply can be used for either surface or subsurface assembly.
Requirements for setting up the construction
  1. Set up cable for power supply 230 V, 50 Hz ? CYKY 3C x 1,5.
  2. Set up alcove for subsurface installation ? size according to installed source.
  3. Set up distribution of electricity to device according to the requirements for setting up construction of the device
Basic technical information
Input voltage230V, 50Hz
Output voltage12V, 50Hz
ZAC 1/20
Capacity125 VA
CoverageIP 42
Weight4,2 kg
ZAC 1/50
ZAC MAS

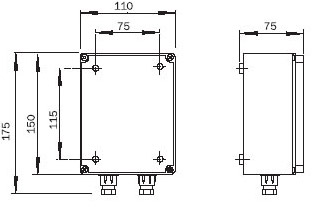

FiguresZAC 1/20

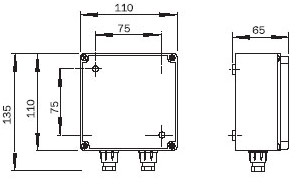

Figure - ZAC MAS safety power-supply for MAS 2 up to MAS 8ZAC 1/50

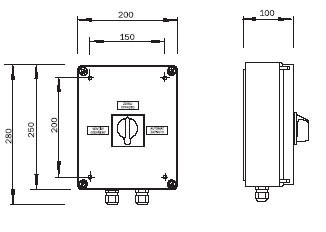

Figure - ZAC MAS safety power-supply for MAS 2 up to MAS 8ZAC MAS
Figure - ZAC MAS safety power-supply for MAS 2 up to MAS 8
